UIP1000hdT – Powerfull and Versatile Homogenizer
The UIP1000hdT ultrasonic homogenizer (1000W, 20kHz) is a powerful and adaptable ultrasonic device for lab testing and industrial processing of liquids. It is used for applications, such as emulsification, dispersing & particle fine milling, lysis & extraction, dissolving or sonochemical reactions. Color touch display, browser remote control, automatic data recording, integrated SD Card and plugable temperature and pressure sensors allow for precise process control and operation comfort..
The UIP1000hdT ultrasonic homogenizer is the powerful link between laboratory testing and the industrial processing of liquids. It combines the flexibility and easy handling required in the research and development with an outstanding performance in heavy-duty operation. For this reason, this single device is used for lab scale feasibility testing, process optimization, and process demonstration for ultrasonic liquid processes.
Adaptable System to Fulfill R&D Needs

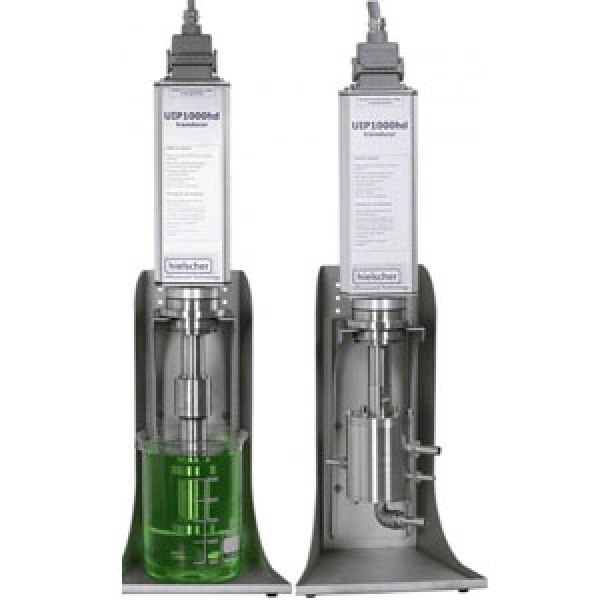

Since the UIP1000hdT ultrasonic homogenizer is very flexible and adaptable, it is being used in many R&D facilities and universities, today. The flexibility of the UIP1000hdT ultrasonic homogenizer results from an extensive list of manifold accessories, such as sonotrodes, boosters and flow cells. In combination with a sonotrode and the stand, you can sonicate sample beakers (click to enlarge picture) to test various liquid formulations for their response to sonication. For the processing of batches larger than 5 liters, we generally recommend to sonicate using a flow cell reactor (flow mode) in order to obtain a better processing quality. When used with a flow cell (right picture) you can run larger samples in recirculation to establish the correlation between parameters, such as amplitude, pressure and liquid composition, and the process results and efficiency. When used for the sonication of liquids in flow mode, the UIP1000hdT ultrasonic homogenizer can typically process between 0.5 and 4.0L/min (The actual rate will depend on your process). As the UIP1000hdT ultrasonic homogenizer is full industrial grade, it can be operated 24 hours per day (24h/7d). A UIP1000hdT can typically process approx. 1 to 5m3 per day
.
High Power and Full Process Control
Powerful sonication is the process solution for manifold liquid processing applications, such as emulsifying, dispersing, milling or dissolving. The UIP1000hdT ultrasonic homogenizerprovides intense ultrasound waves to fulfill demanding tasks without problems. To ensure a consistent process quality, not only the power delivered is essential, the control and monitoring of all important process parameters is key. The new generation of hdT ultrasonicators enables the operator to pilot the ultrasonic device via touch display or browser remote control. All relevant process parameters – such as amplitude, sonication time, temperature and pressure – are automatically recorded and saved as CSV file on the integrated SD Card. Thereby, the new UIP1000hdT ultrasonic homogenizer provides the same ultrasound power as the predecessor UIP1000hd ultrasonic homogenizer, but excels with a broad range of additional features, which makes the ultrasound process much more user-friendly. From the operational view, the precise control of all ultrasonic process parameters are absolut key functions.
Industrial Ultrasonic Processor UIP1000hdT
consisting in ultrasonic transducer and generator, ultrasonic frequency 20kHz, automatic frequency tuning system, amplitude 25 micron, amplitude adjustable from 20 to 100%, dry running protected, transducer IP64 grade, digital control, with colored touch-screen, integrated count-down timer (0.1sec to 99 days), shutdown when final energy input reached: Ws, Wh, kWh; automatic calibration when needed: determination of amplitude-dependent idle power to dislpay the effective energy input, data recording: amplitude, power, time, temperature on internal SD Card (1GB), display and remote control via browser on PC or MAC without software installation, with temperature sensor, temperature indication: °C, °F (-50°C bis 200°C), temperature monitoring: variable switch-off/on points (-50°C – 200°C), 3m cable transducer to generator, with mounting tools, titanium horn with female thread M14x1.
