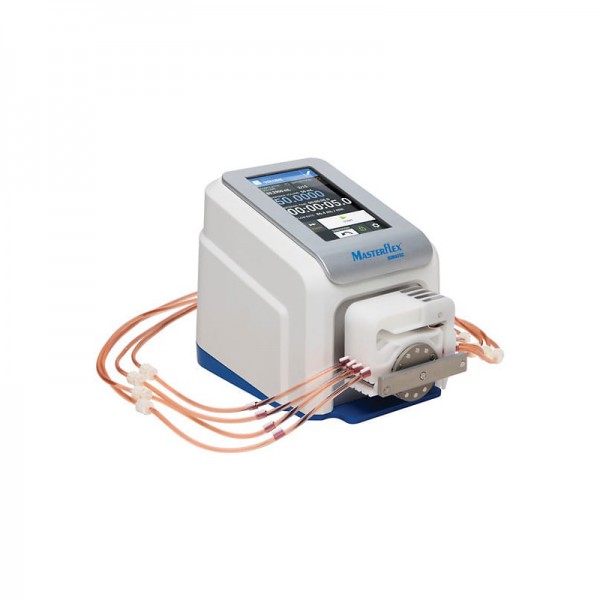

Masterflex® Ismatec® Reglo Digital Multichannel Pumps, Avantor® - MFLX78018-22

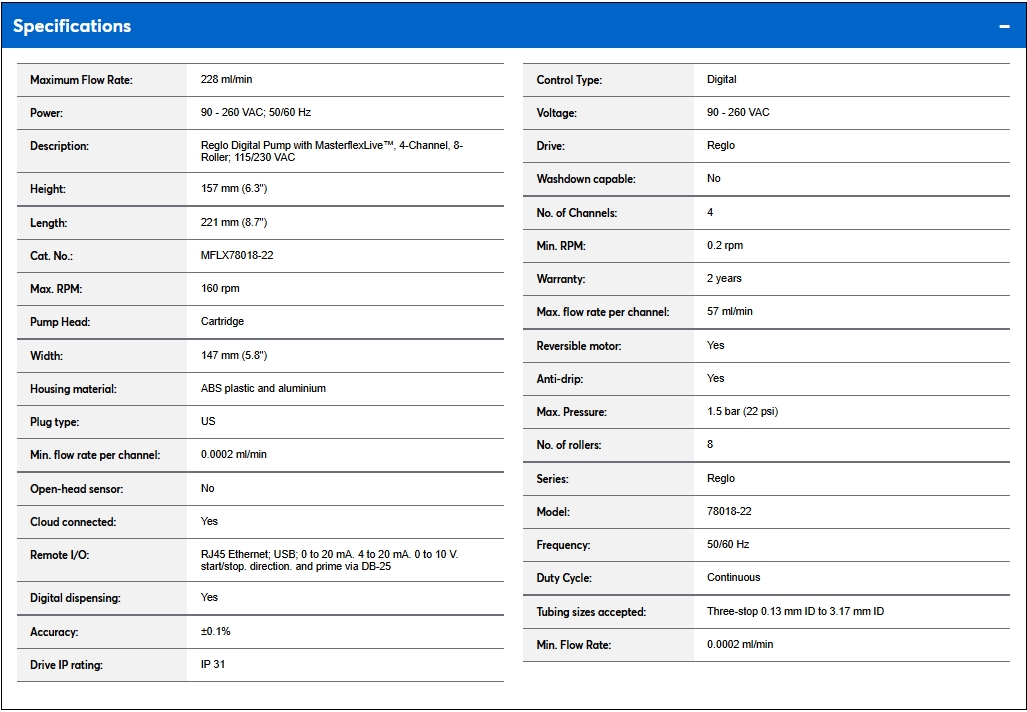

Reglo Digital Pump with MasterflexLive™, 4-Channel, 8-Roller; 115/230 VAC, US, 228 ml/min, 157 mm (6.3"), 221 mm (8.7"), 147 mm (5.8"), Cartridge, 90 - 260 VAC; 50/60 Hz, 160 rpm, ABS plastic and aluminium

Versatile multichannel pumps for accurate low-flow fluid delivery – with an intuitive touch-screen interface.

• Compact, benchtop pumps optimize ease of use, accuracy, and reliability
• 5” (12.7 cm) capacitive TFT/RGB touch screen for crisp resolution and a wide viewing angle
• Flexible operational control via screen or analog remote control

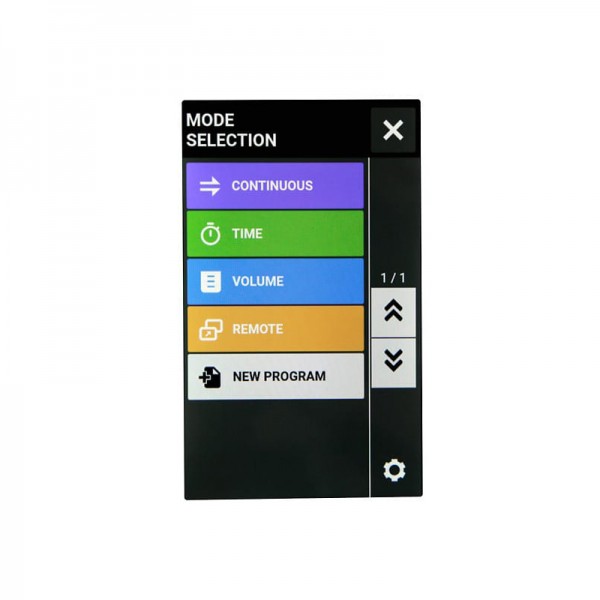

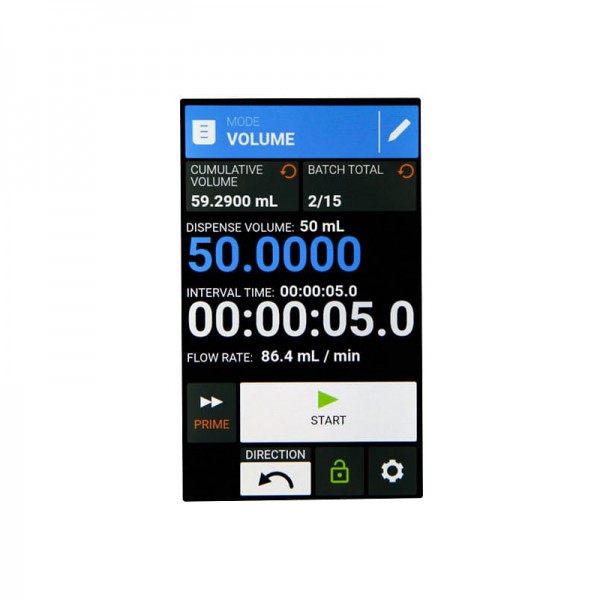

• Continuous run, volume dispense, and time dispense modes -- batch control and interval/off time in Volume and Time modes
• Pump lets you save and retrieve commonly used dispense programs for rapid set up
• Anti-drip and speed ramping available in Volume dispense mode – ensure accuracy and minimize sample loss
• Cassette pump models accept 3-stop tubing for easy loading and secure retention
• Three-level user access – gives you the option of controlling who can operate the pump and at what level

MasterflexLive® is a secure, cloud-enabled platform for monitoring Masterflex pumps; get real-time notifications of pump parameters – including speed, flow rate, dispense volume, and more. You can monitor critical processes running 24/7 without the need for onsite personnel while push notifications alert you to operating conditions and error messages.

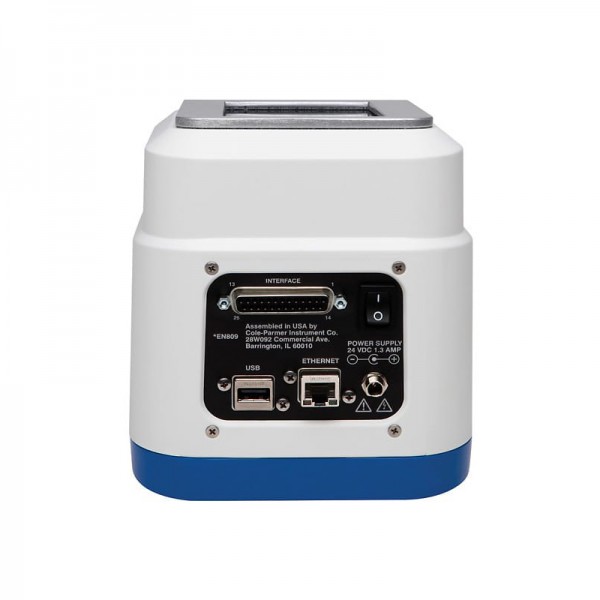

Internet connection via Wi-Fi or standard Ethernet (RJ45) jack on rear of drive; USB connection allows for downloadable firmware updates to be loaded into the pump.

Tubing cassettes (included) accept 3-stop tubing and are easily snapped in/out for quick tubing changes. Accepted tubing ranges from 0.13 to 3.17 mm ID for a wide flow range.

Order the three-stop tubing size and formulation to suit your application needs (sold separately).

Ordering information: Each model includes a country specific plug/cord set; choose the catalog number with desired country plug type. All units include an IEC 320 socket with a detachable standard US three prong power cable. .

Delivery: Includes pump drive, pump head, cassettes, and power adapter with 1.8 m (6 ft.) line cord. These models are shipped with country specific plug/cord set; please order the specific catalog number with the desired plug type.
