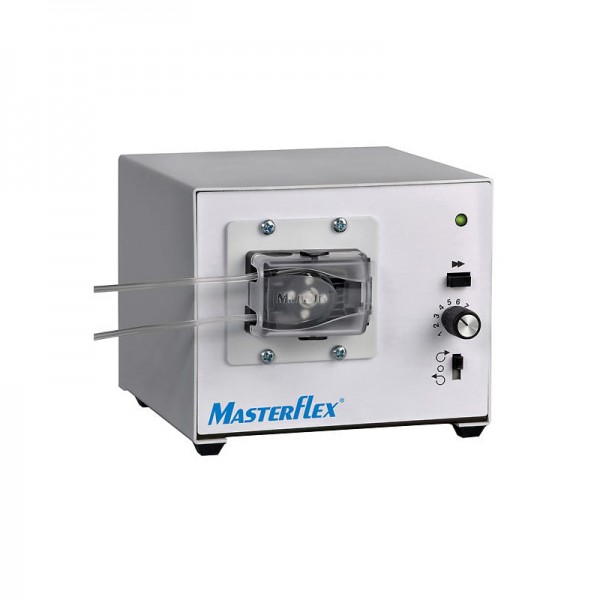

Masterflex® Ismatec® Microflex Variable-Speed Pump Systems, Avantor® - MFLX77122-30

Microflex Compact Single-Channel Pump, 10 rpm, 115/230 V, US, 1.65 ml/min, 114 mm (4.5"), 172 mm (6.75"), 134 mm (5.25"), MICF, 90 - 260 VAC; 50/60 Hz; 0.4 A @ 115 V; 0.25 A @ 230 V, 10 rpm, Painted steel

Easy-to-use low-flow pumps feature reversible pumping, remote start/stop, and rapid tubing changes.

• Polyphenylene sulfide (PPS), acetal, and copolyester pump head with four stainless steel (SS) rollers
• Pumps accept continuous lengths of tubing for a clean, uninterrupted flow path with no fittings.
• Separate single-turn speed control and cw/off/ccw switch with green LED power indicator—maintain speed setting when you turn pump on/off or reverse direction.
• Reversible permanent magnet DC motor; purge fluid before or after pumping; pump fluid in either direction.
• Remote control connections on back of pump; start/stop pump with a contact closure.

These easy-to-use pumps feature reversible pumping, remote control capabilities, and rapid tubing changes. Ideal for consistent fluid delivery in analyzer and other low-flow laboratory pumping applications. The quick-loading Microflex pump head has average fixed occlusion for tubing; no occlusion adjustments required.
