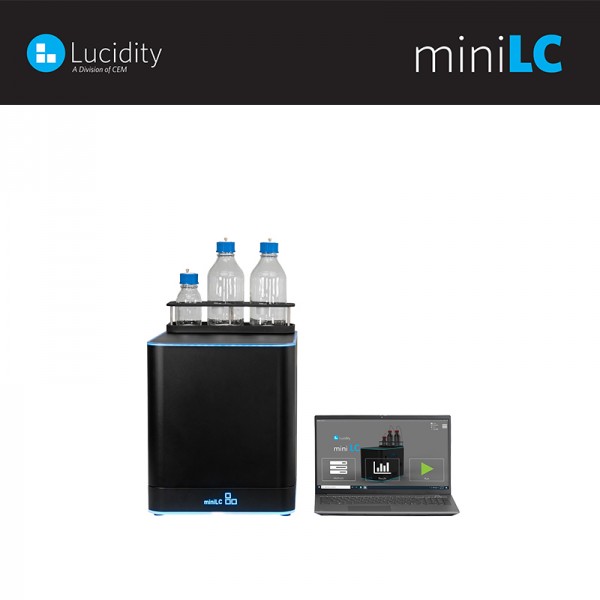

The miniLC from Lucidity is the smallest, easiest to use, lowest cost, fully functional Liquid Chromatography (LC) system available. Through revolutionary design, Lucidity has been able to create a LC-UV system that gives comparable results to the traditional larger, more expensive HPLCs and UHPLCs but in a much smaller, much easier to use, and much more affordable package, allowing organizations to deploy LC technology in many more places than they ever could before. The miniLC is changing where LC is used, who is using it, and how many systems an organization can obtain.

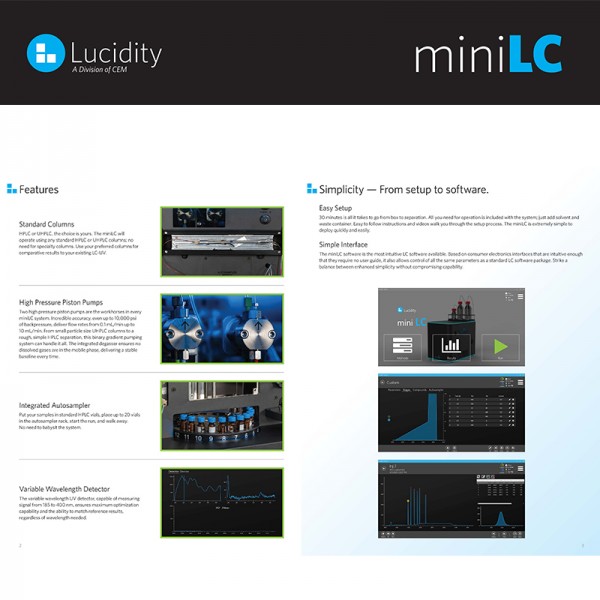

Standard Columns
HPLC or UHPLC, the choice is yours. The miniLC will operate using any standard HPLC or UHPLC columns; no need for specialty columns. Use your preferred columns for comparative results to your existing LC-UV.
High Pressure Piston Pumps
Two high pressure piston pumps are the workhorses in every miniLC system. Incredible accuracy, even up to 10,000 psi of backpressure, deliver flow rates from 0.1 mL/min up to 10 mL/min. From small particle size UHPLC columns to a rough, simple HPLC separation, this binary gradient pumping system can handle it all. The integrated degasser ensures no dissolved gases are in the mobile phase, delivering a stable baseline every time.
Integrated Autosampler
Put your samples in standard HPLC vials, place up to 20 vials in the autosampler rack, start the run, and walk away.
No need to babysit the system.
Variable Wavelength Detector
The variable wavelength UV detector, capable of measuring signal from 185 to 400 nm, ensures maximum optimization capability and the ability to match reference results, regardless of wavelength needed.
Easy Setup
30 minutes is all it takes to go from box to separation. All you need for operation is included with the system; just add solvent and waste container. Easy to follow instructions and videos walk you through the setup process. The miniLC is extremely simple to deploy quickly and easily.
Simple Interface
The miniLC software is the most intuitive LC software available. Based on consumer electronics interfaces that are intuitive enough that they require no user guide, it also allows control of all the same parameters as a standard LC software package. Strike a balance between enhanced simplicity without compromising capability.
Specifications :
• Uses standard HPLC and UHPLC columns
• System capable of operating up to 10,000 psi
• Binary Gradient Pumping System
• Flow rates: 0.1 -10.0 mL/min
• Fixed volume sample loop
• Integrated 20 position autosampler
• Integrated pressure sensor
• Integrated pulse dampeners and mixers for optimal solvent mixing
• Integrated high end degasser
• Multiple drip trays with integrated leak sensors located throughout the system for leak detection
• Multiwavelength UV detector (185-475 nm)
• Deuterium light source
• Includes external Windows based applications software and laptop
• Power: 100-260 V, 50-60 Hz input power
• Size: 14” (36 cm) wide x 20” (51 cm) long x 17” (43 cm) tall
• Weight: 72 lbs
